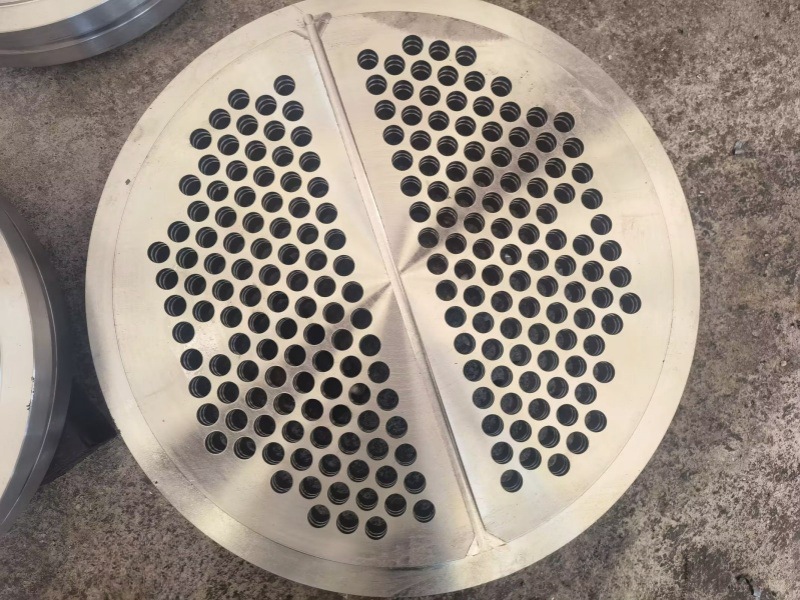

Duplex Stainless Steel 2205, Tube Sheets, Customized Tubesheet For High Pressure Vessel

Duplex Stainless Steel 2205, Tube Sheets, Customized Tubesheet For High Pressure Vessel

Forged Tube Sheets Manufacturer Changrun Supplies Forged Tubesheet.

Lagest Forging: 100MT.

Max OD of tube sheets: 8 Meters.

Tube hole details: positioning accuracy of up to 0.01mm, minimum aperture tolerance of 0.01mm, minimum roughness Ra0.6 in the hole.

Material: Duplex 2205

Standards: ASTM, AISI, ASME, DIN, EN, AS, GB.

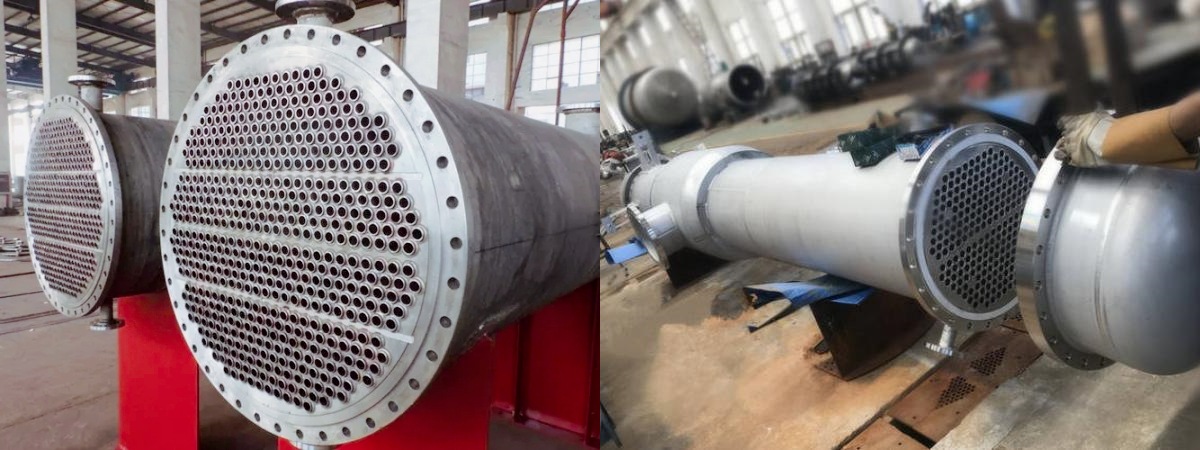

Wuxi Changrun's order this time comes from an Australian petrochemical customer. This batch of products will be used for heat exchangers in transformer oil coolers in petrochemical equipment, consisting of baffle plates and tube sheets, using Duplex Stainless Steel 2205, which requires very high processing accuracy. The sales department, technology department, production department, quality control department, and service departments of Wuxi Changrun coordinate with each other, strictly following customer processing requirements to ensure processing quality and timely delivery.

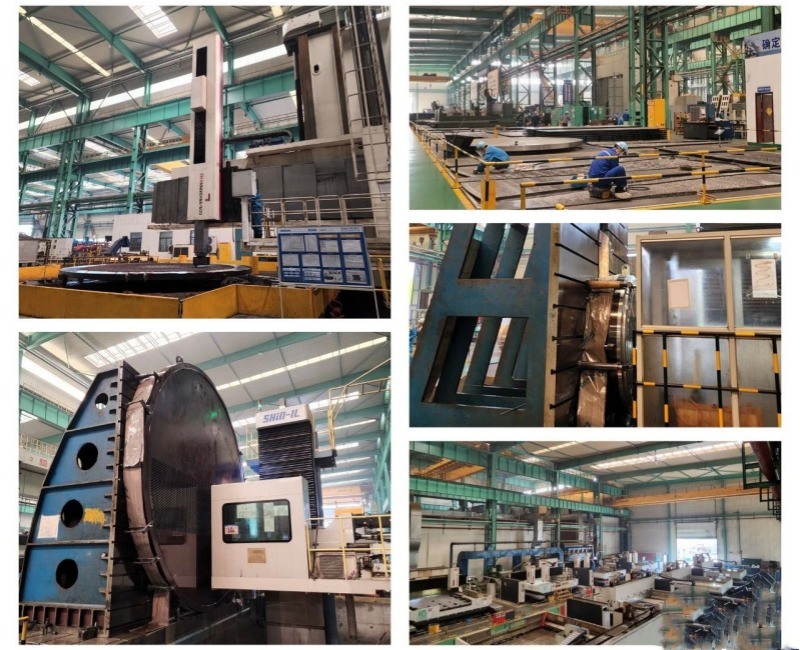

Wuxi Changrun has a highly competitive comprehensive machining service platform, relying on a cluster of over 100 high-precision and cutting-edge CNC machining equipment imported from Europe, the United States, Germany, Japan, and other countries, which can provide“ μ High precision machining services such as turning, milling, boring, and drilling can meet the diverse combination machining needs of numerous industry customers.



Wuxi Changrun has dual axis and 4-axis equipment for drilling tube sheets, which greatly improves processing efficiency.



At present, Wuxi Changrun's excellent heavy-duty precision machining services have covered multiple industries such as petrochemicals, engineering machinery, marine engineering, pressure vessel tube sheets, nuclear energy and wind power, medical and environmental protection, and aerospace.



Materials:

Carbon Steel & Alloy Steel

ASTM A516 Gr.70, ASTM A105, ASTM A266 Gr.2, ASTM A182 F1, F2, F5, F9, F11, F12, F22, F6a, F6NM, F91, ASTM A350 LF1/LF2/LF6

Stainless Steel & Duplex Steel

ASTM A240 Gr.304, 304L, 304H, 316, 316L, 316Ti, 321, 321H, 310S, 310H, 310MoLN, 317L, 347, 347H, 904L, AL-6XN (N08367), Duplex 2205 (S31803 & S32205), Duplex 2507 (S32750), 410, 444, 253MA, 254SMO (S31254)

ASTM A182 F304, F304L, F304H, F316, F316L, F316Ti, F321, F321H, F310, F310H, F317L, F347, F347H, F20 (N08020), F44 (S31254), F51 (S31803), F53 (S32750), F60 (S32205), F62 (N08367), F904L

Nickel & Nickel Alloy

Nickel 200, Nickel 201, Monel 400,

Incoloy 800/800H/800HT/825/901/926, A-286,

Inconel 600/601/625/718/X-750,

Hastelloy B/B-2/C-4/C-22/C-276, Invar 36

Titanium & Titanium Alloy

ASTM B265 Gr.1, Gr.2, Gr.7, Gr.12

ASTM B381 F1, F2, F7, F12

Copper & Copper-Nickel

C46400, C61400, C70600 (10% Ni, 90% Cu), C71500 (30% Ni, 70% Cu)

Clad Materials

Explosive Cladding(SS/CS, Ni/CS, Cu/CS, Ti/CS, Ti/SS, Cu/SS, Ni/SS, Ti/Cu, Ti/Ni) & Overlay Welding





Service:

Main Test: chemical composition, mechanical properties, PT, UT, intergranular corrosion, composite strength, hardness, size, roughness.

Certificates: CE, ISO, ABS, DNV, LR, KR, PED, TS, BV, CQC.

Packing: Plywood Case or Pallet
