Tube Sheet/ Tube Plate
Home Tube Sheet/ Tube Plate

904L Tube Sheet

904L Tube Sheet

Forged Tube Sheets Manufacturer Changrun Supplies Forged Tubesheet.

Lagest Forging: 100MT.

Max OD of tube sheets: 8 Meters.

Tube hole details: positioning accuracy of up to 0.01mm, minimum aperture tolerance of 0.01mm, minimum roughness Ra0.6 in the hole.

Material: 904L

Standards: ASTM, AISI, ASME, DIN, EN, AS, GB.



The tube sheet is one of the main components in a shell & tube heat exchanger. Depending on the tube bundle configuration, a heat exchanger can be equipped with one or two tube sheets. These are usually made of steel material, with a varying thickness based on the fluid pressure. Depending on the final application (petrochemical, nuclear, oil&gas, etc.) the tube sheet can be cladded with Stainless Steel or other Super Alloys or even be entirely made out Stainless Steel or Superalloys.

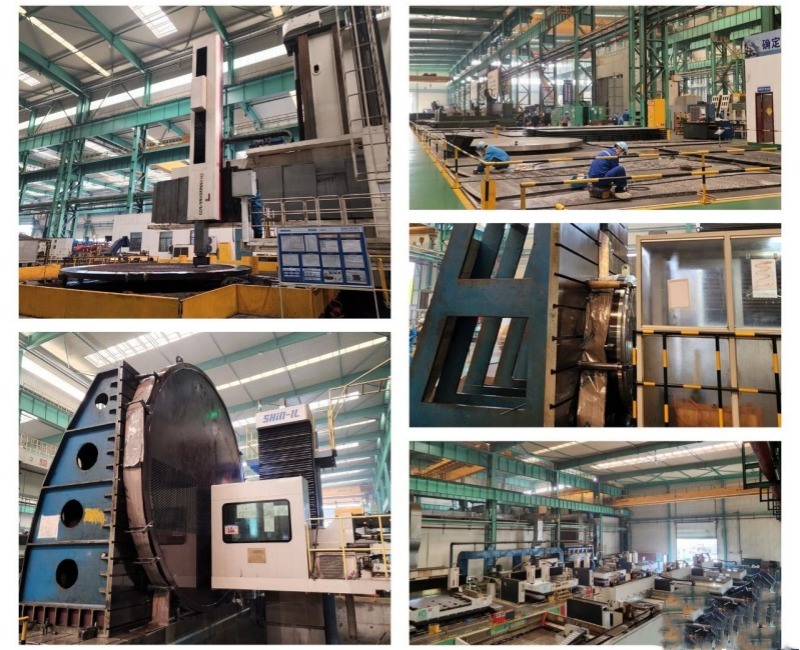

Wuxi Changrun can efficiently process products in bulk and meet the personalized customization needs of customers. Wuxi Changrun has the standard configuration of CNC machines, advanced machining equipment such as large tabletop machines, multi hole drills, deep hole drills, and vertical lathes. The "one-stop" high-efficiency and fast delivery tube sheet processing provides strong support, truly helping customers achieve cost reduction and efficiency increase.







Materials:

Carbon Steel & Alloy Steel

ASTM A516 Gr.70, ASTM A105, ASTM A266 Gr.2, ASTM A182 F1, F2, F5, F9, F11, F12, F22, F6a, F6NM, F91, ASTM A350 LF1/LF2/LF6

Stainless Steel & Duplex Steel

ASTM A240 Gr.304, 304L, 304H, 316, 316L, 316Ti, 321, 321H, 310S, 310H, 310MoLN, 317L, 347, 347H, 904L, AL-6XN (N08367), Duplex 2205 (S31803 & S32205), Duplex 2507 (S32750), 410, 444, 253MA, 254SMO (S31254)

ASTM A182 F304, F304L, F304H, F316, F316L, F316Ti, F321, F321H, F310, F310H, F317L, F347, F347H, F20 (N08020), F44 (S31254), F51 (S31803), F53 (S32750), F60 (S32205), F62 (N08367), F904L

Nickel & Nickel Alloy

Nickel 200, Nickel 201, Monel 400,

Incoloy 800/800H/800HT/825/901/926, A-286,

Inconel 600/601/625/718/X-750,

Hastelloy B/B-2/C-4/C-22/C-276, Invar 36

Titanium & Titanium Alloy

ASTM B265 Gr.1, Gr.2, Gr.7, Gr.12

ASTM B381 F1, F2, F7, F12

Copper & Copper-Nickel

C46400, C61400, C70600 (10% Ni, 90% Cu), C71500 (30% Ni, 70% Cu)

Clad Materials

Explosive Cladding(SS/CS, Ni/CS, Cu/CS, Ti/CS, Ti/SS, Cu/SS, Ni/SS, Ti/Cu, Ti/Ni) & Overlay Welding





Service:

Main Test: chemical composition, mechanical properties, PT, UT, intergranular corrosion, composite strength, hardness, size, roughness.

Certificates: CE, ISO, ABS, DNV, LR, KR, PED, TS, BV, CQC.

Packing: Plywood Case or Pallet
